MGPM-Z, Standard Guided Cylinder, Slide Bearing

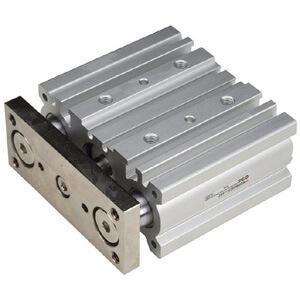

SMC MGPM12-40Z

The MGPM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.

• Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
• Non-rotating accuracy: +/-0.08° (12 & 16 mm bore)
• Non-rotating accuracy: +/-0.07° (20 & 25 mm bore)
• Non-rotating accuracy: +/-0.06° (32 & 40 mm bore)
• Non-rotating accuracy: +/-0.05° (50 & 63 mm bore)
• Non-rotating accuracy: +/-0.04° (80 & 100 mm bore
