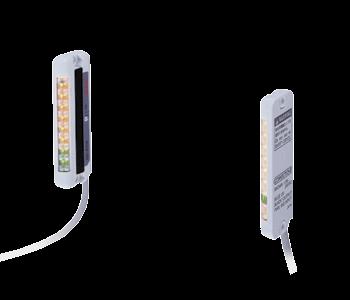

    Compact Size Picking Sensor NA1-PK3
    Compact Size Picking Sensor NA1-PK3

    Boasts a compact, pocket lighter size enabling universal installation

    Compact Size Picking Sensor NA1-PK3
    UL Recognaized CE Marking

    UL , CE Approved
    CE : EMC Directive
    UL : Recognition

    Features

    Space-saving, pocket lighter-sized unit

    Ultra compact size: W24 x H70 x D8 mm W0.945 x H2.756 x D0.315 in
    Can even be mounted within the small space constraints of parts containers.

    Space-saving, pocket lighter-sized unit

    Utilizes a large, bright, clearly visible job indicator

    The ultra compact body incorporates a job indicator approx. 50 mm 1.969 in tall.
    Due to its brightness and high visibility, it is now possible to check sensor operation even from a distance.

    Utilizes a large, bright, clearly visible job indicator

    No synchronization wires required

    Synchronization wires are not required, due to the utilization of a synchronized scanning system that results in a reduction of wiring man-hours. In addition, the sensors can be switched among three different emission frequencies, allowing up to three sets of sensors to be installed closely together in the same vertical plane, without causing mutual interference. Even when installed in multistage shelving, malfunctions due to mutual interference will not occur. (When mounted horizontally, a maximum of two sensor sets may be used side-by-side, without interference.)

    No synchronization wires required

    Switchable output operation

    Output operation can be switched to suit the desired application.

    Sensor protection brackets are available

    Sensor protection brackets are now available (optional), to protect sensors from damage due to tools and other objects. The protection brackets have a black coating, which enhances the visual effectiveness of the job indicator.

    Sensor protection brackets are available

    Easy alignment

    The sensor's beam axis is directly in line with the mounting holes, making sensor alignment easier.
    Mounting can be performed simply by using M4 nuts.

    Easy alignment

    Flexible cable orientation

    The cabling can be oriented in either of the two different directions: downward or sideways, thus permitting a flexible layout, in accordance with the sensor's mounting position.

    Flexible cable orientation
